PCC Panels in Pharma Plants: How to Achieve Safety, Redundancy & IEC Compliance
Modern pharmaceutical plants rely heavily on uninterrupted power to maintain precision, safety, and quality across operations. From temperature-controlled storage to automated production lines, every process needs a dependable electrical backbone. This is where PCC panels come in serving as the primary control point for power distribution across the facility.
For pharma plants, compliance with international safety standards, backup mechanisms, and continuous monitoring aren’t optional they’re mission-critical. Selecting the right PCC panel supplier in India can play a defining role in operational efficiency and plant safety.
Let’s understand how PCC panels function in pharmaceutical plants and the considerations that make them safe, compliant, and reliable.
Understanding the Role of PCC Panels in Pharma Operations

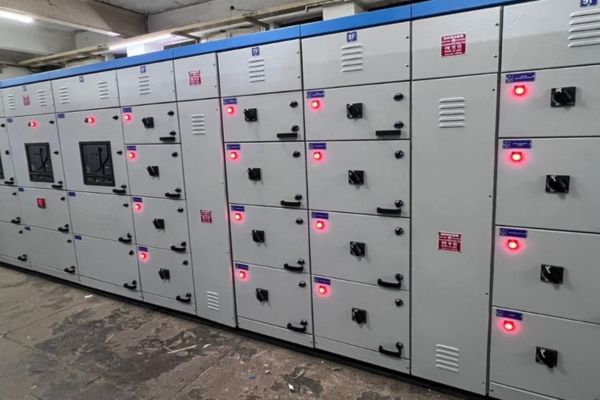

PCC panels (Power Control Centres) are central to managing the distribution of electrical power from the source to various parts of a plant. In pharmaceutical facilities, they support operations like:
- Powering HVAC systems for cleanrooms
- Managing lighting and air handling units
- Ensuring controlled power supply to sensitive machinery
- Supporting UPS and backup generators for critical equipment
With strict guidelines such as GMP, WHO, and IEC 61439 shaping pharmaceutical infrastructure, PCC panels must be built to not just deliver power but to protect people, processes, and products.
Why Pharma Plants Need Advanced PCC Panels
Pharma manufacturing demands a zero-compromise approach to safety and consistency. Poor power distribution can damage equipment, lead to data loss, or worse, spoil entire batches of medicines.
Here’s why a high-quality PCC panel is indispensable:
- Stable power distribution to all departments
- Short-circuit and overload protection for machinery
- Real-time energy monitoring to prevent system failure
- Segregated power zones for sterile and non-sterile areas
- Redundancy to avoid downtime during maintenance or faults
Unlike general manufacturing, pharmaceutical units deal with life-critical products, where power reliability is non-negotiable.
Key Features of a PCC Panel That Meet Pharma Standards
When sourcing or upgrading power control panels, pharma decision-makers need to evaluate several design features that go beyond general use. Below is a list of practical and technical features that a pharma-grade PCC panel should have:
Electrical and Functional Features:
- Busbar rated for high fault level (upto 50kA or more)
- Type-tested assemblies per IEC 61439 standards
- Modular design for scalability
- Load break and isolator switches
- Protective relays for overcurrent, earth fault and phase failure
- Auto-transfer switch (ATS) for generator backup
Safety and Compliance Features:
- Fire-retardant enclosure coating
- Insulation coordination with leakage prevention
- Segregated compartments to avoid arc flash
- Door interlocks and shrouded terminals
- IP54/65 ratings for dust and water protection
Monitoring & Control:
- Digital energy meters
- SCADA compatibility for remote monitoring
- Power factor controllers
- Multi-function displays
Pharma units operate in strictly regulated environments, so compliance with IEC and IS standards is mandatory.
Types of PCC Panels Used in Pharma Industry
Different departments within pharmaceutical manufacturing demand different types of PCC panels. Here’s a breakdown of commonly used panel configurations:
| PCC Panel Type | Application in Pharma Plant | Highlights |
| Main PCC Panels | Distribute power from main source | High load-bearing capacity |
| Sub PCC Panels | Department-specific power management | Lower capacity, department-level control |
| Auto-mains failure PCC panels | Seamless shift to generator during outages | Used in labs and cleanrooms |
| Intelligent PCC panels (iPCC) | Real-time analytics and fault detection | Integrated with SCADA and PLC systems |
| Custom-built pharma PCCs | For sterile zones with specialised requirements | Stainless steel enclosures, IP65 rating |
Selecting the right type of PCC panel depends on factors like load, plant size, automation needs, and safety zones.
Safety Measures to Look For in PCC Panels
Safety in pharma facilities starts with prevention. Your PCC panel must help reduce risk of electrical faults and support maintenance with minimal human exposure.
Here’s what contributes to a safer electrical environment:
- Arc-proof design: Panels should limit arc propagation during faults
- Shrouded busbars and terminals: Prevents accidental contact
- Thermal overload trips: Cuts off power when overheating is detected
- Earth leakage detection: Warns against current leakages to ground
- Dual power sources: Backup feeds to keep critical systems running
When evaluating vendors, always ask about internal wiring practices, panel layout clarity, and protection grading.
Redundancy and Continuity: The Backbone of Pharma Safety
Power disruptions in a pharma plant can interrupt batch cycles or damage temperature-sensitive stock. Redundancy is the smart answer.
Here’s how redundancy is implemented within PCC panels:
- Dual incomer systems: Two power sources with changeover mechanism
- Bus coupler arrangement: Allows switching between different feeders
- Modular components: Replace individual units without shutting down the system
- Load sharing and shedding: Maintains balance during partial failure
Downtime in pharmaceutical plants equals financial losses and product waste. Building in intelligent backup strategies protects both.
Meeting IEC Standards – What It Means for Pharma Plants
The IEC 61439 is the global benchmark for low-voltage switchgear and controlgear assemblies. Panels built to this standard meet:
- Design verification under operational conditions
- Dielectric strength and temperature rise limits
- Protection against electric shock
- Short-circuit performance testing
- Clearance and creepage distances
When your PCC panel meets IEC 61439, it tells auditors, regulators, and clients that your plant adheres to internationally recognised safety and performance standards.
Selecting the Right PCC Panel Supplier in India
The choice of supplier impacts not only the product quality but the after-sales service, compliance documentation, and customisation available.
When choosing a PCC panel supplier in India, pharma plant managers should consider:
- Experience with pharma-grade projects
- In-house design and testing facilities
- Support for IEC and GMP documentation
- Provision of AMC (Annual Maintenance Contracts)
- Scalability options for future plant expansion
This is where Dj Electro Controls stands out.
Dj Electro Controls – A Trusted Manufacturer of PCC Panels
Dj Electro Controls is a long-standing PCC panel manufacturer and supplier catering to industries with strict compliance requirements, including pharma, chemicals, and food processing.
What makes Dj Electro Controls reliable for pharmaceutical applications:
- Panels designed with IEC 61439 compliance
- Wide range of standard and intelligent PCC panels
- Customisation for sterile environments and clean zones
- Proven record with pharma industry clients
- Efficient post-installation support and AMC options
Their panel designs are type-tested and supported by dedicated engineering teams that understand the criticality of uninterrupted power in regulated environments.
Real-World Use Case: Cleanroom Power Distribution
Cleanrooms require an absolute control over temperature, humidity, air pressure, and lighting. PCC panels installed in such zones must be:
- Dust-tight and corrosion-resistant (IP65+ rating)
- Capable of integrating with Building Management Systems (BMS)
- Designed to avoid heat generation within enclosed environments
Dj Electro Controls delivers stainless steel, hermetically sealed panels that meet these conditions combining hygiene with power reliability.
Frequently Asked Questions
Q1. Why are PCC panels essential in pharmaceutical plants?
Answer: They manage safe power distribution, protect sensitive equipment, and maintain operational continuity across cleanrooms and processing areas.
Q2. What standards should PCC panels follow in pharma facilities?
Answer: PCC panels should comply with IEC 61439, IS standards, and support pharma-specific guidelines like GMP.
Q3. What’s the difference between PCC and MCC panels in a pharma plant?
Answer: PCC panels handle main power distribution, while MCC panels focus on controlling motors and drives. Both are essential but serve different functions.
Q4. Can PCC panels be integrated with SCADA in pharma plants?
Answer: Yes, modern PCC panels can connect with SCADA for remote monitoring, data logging, and fault alerts, which is ideal for regulated environments.
Q5. How do I choose a reliable PCC panel supplier in India?
Answer: Look for a supplier with pharma industry experience, proven testing records, IEC certification, and capability to offer custom builds and AMC support.
Q6. What are the safety features in a pharma-grade PCC panel?
Answer: Shrouded busbars, interlocked doors, fire-resistant enclosures, and dual power inputs help maintain high safety standards.
Q7. Are stainless steel enclosures mandatory for PCC panels in pharma?
Answer: Not mandatory for all zones, but essential in cleanrooms or sterile areas where hygiene and corrosion resistance are required.
Conclusion
PCC panels are more than just power boxes they are the nerve centre of pharmaceutical manufacturing plants. A well-built, compliant, and intelligently configured panel protects your operations, your equipment, and your reputation.
As the industry continues to move towards automation, data logging, and zero-fault manufacturing, your choice of PCC panel supplier matters more than ever.
For pharma units looking to upgrade or set up compliant power control systems, Dj Electro Controls offers tested, durable, and future-ready solutions built to international standards.
Need a quote or technical consultation? Contact Dj Electro Controls and speak to the team directly.
