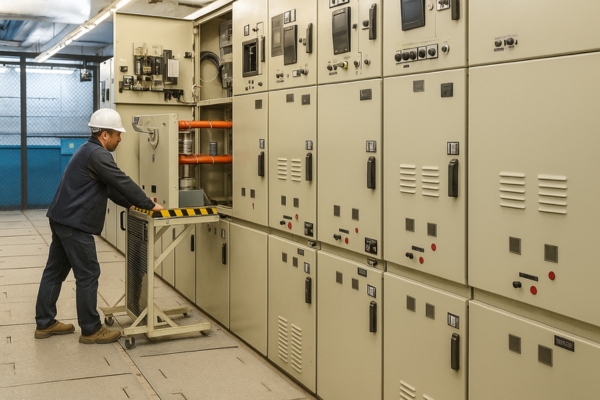

Top 5 Causes of Switchgear Panel Failures and Solutions

Introduction

In industrial environments, where power systems must function without interruption, a minor electrical fault can lead to significant downtime. As a leading switchgear panel manufacturer, DJ Electro Controls understands how essential it is to keep these panels running smoothly. Failures not only affect performance but can result in safety hazards and operational losses.

To help plant managers, technicians, and facility owners, we’ve outlined the top 5 causes behind switchgear panel failures along with practical solutions and preventive tips. If your operation depends on uninterrupted electricity, this guide is for you.

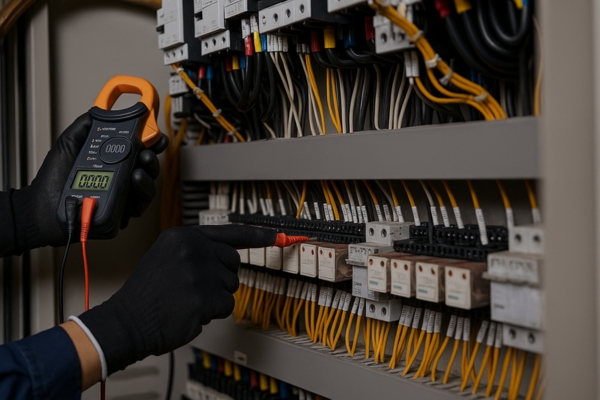

1. Poor Maintenance Practices

Even the best-engineered switchgear systems can fail if they’re not looked after. Maintenance neglect remains one of the most widespread causes of electrical panel malfunction.

Common Maintenance Errors:

• Ignoring scheduled inspections

• Failure to clean and tighten terminals

• Not replacing worn-out parts

• Skipping insulation resistance tests

Solution:

• Implement a preventive maintenance schedule

• Conduct thermal imaging to detect overheating

• Train staff to spot early warning signs

• Keep a maintenance logbook to record all service history

When handled properly, these simple practices reduce failure rates and extend equipment lifespan.

2. Environmental and Installation Conditions

Environmental factors play a silent but serious role in switchgear panel performance. High humidity, dust accumulation, or improper installation can quietly damage the internal systems.

Causes of Environmental Damage:

• Excessive moisture leading to corrosion

• Accumulated dust causing overheating

• Insects or rodents entering panels

• Panels installed without ventilation

Solution:

• Use IP-rated enclosures suitable for the site

• Ensure proper sealing and ventilation

• Install humidity controllers in tropical climates

• Position panels away from direct heat or moisture sources

Partnering with an experienced switchgear panel manufacturer like DJ Electro Controls ensures that your panels are installed with environment-specific protection in mind.

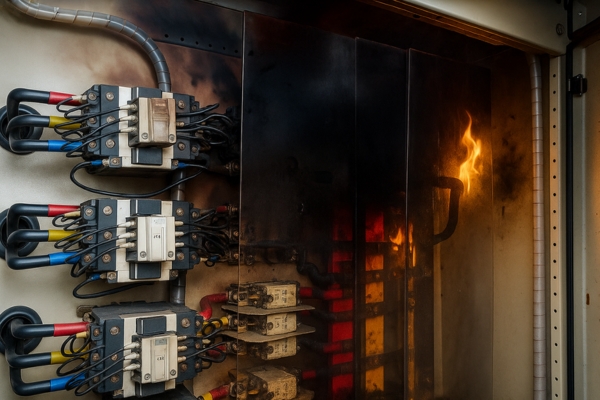

3. Electrical Overloads and Short Circuits

Unbalanced loads, unexpected surges, and faults in downstream equipment can cause overcurrent conditions. These can seriously damage the switchgear, leading to tripping, arcing, or component burnout.

Common Electrical Faults:

• Loose or corroded terminals

• Underrated circuit breakers

• Improper load distribution

• Aging components unable to handle load spikes

Solution:

• Choose correctly rated switchgear components

• Install overcurrent protection devices

• Conduct load balancing and power quality analysis

• Upgrade ageing components during audits

Switchgear panels built with high-quality materials and engineered by a reliable manufacturer like DJ Electro Controls are better equipped to handle overloads.

4. Ageing and Wear of Components

All electrical components have a finite lifespan. Over time, contacts wear out, insulation breaks down, and internal parts degrade. Ignoring ageing equipment can result in sudden failure.

Signs of Ageing Components:

• Frequent tripping

• Burn marks or overheating

• Flickering or unstable performance

• Delayed response time

Solution:

• Conduct routine testing of insulation and conductivity

• Replace contactors, relays, and busbars as they wear

• Maintain a component replacement calendar

• Consult your switchgear supplier for compatible upgrades

Don’t wait for failure to replace components. Proactive replacement based on usage hours can save time, cost, and safety concerns.

5. Human Error and Operational Mistakes

Surprisingly, one of the most overlooked causes of switchgear panel failures is human error. From poor installation to incorrect switching sequences, small mistakes can have big consequences.

Typical Operational Mistakes:

• Unauthorised panel access

• Incorrect breaker settings

• Poor wiring during commissioning

• Manual override during faults

Solution:

• Train operators and technicians thoroughly

• Use lockout-tagout (LOTO) systems

• Clearly label all circuits and settings

• Limit panel access to authorised personnel only

Accidents are preventable when procedures are followed, and teams are properly trained. DJ Electro Controls offers custom labelling and guidance for safe switchgear operation.

Preventing Switchgear Failure: Strategies for Avoiding Failures

A long-term prevention strategy can save your facility thousands in repairs and downtime. Here are key tactics that every electrical infrastructure manager should adopt:

Strategies:

• Choose a trusted switchgear panel manufacturer that uses tested components

• Adopt a condition-based maintenance approach

• Implement remote monitoring tools for predictive diagnostics

• Replace obsolete panels with modern modular switchgear

• Conduct yearly insulation resistance tests and relay calibration

When prevention becomes part of your standard operating procedure, failure rates drop considerably.

Understanding Switchgear: The Role It Plays in Safety and Efficiency

Switchgear is central to any electrical distribution system. Whether you’re running a factory, commercial building, or utility substation, it protects assets and human life by controlling, isolating, and safeguarding circuits.

Types of Switchgear:

• Low Voltage (LV) Switchgear: Used for circuits below 1kV. Common in factories, offices, and small plants.

• Medium Voltage (MV) Switchgear: 1kV to 36kV. Ideal for substations and industrial zones.

• High Voltage (HV) Switchgear: Above 36kV. Used in large grids and transmission networks.

Each type demands a different set of protections, materials, and installation guidelines. Choosing the right type with expert support from DJ Electro Controls ensures your system functions safely and efficiently.

Consequences of Switchgear Failures

When a switchgear panel fails, the impact goes beyond a few hours of downtime. The consequences can be serious for both operational and financial performance.

Risks Involved:

• Equipment damage due to arc faults

• Power outages affecting production

• Safety hazards for on-site workers

• Regulatory non-compliance and penalties

The safest approach is to invest in quality, maintain equipment, and partner with a reputed switchgear panel manufacturer that supports you even post-installation.

FAQ

Q1. How often should switchgear panels be inspected?

Answer: Panels should be inspected at least once every 6 to 12 months, depending on environmental conditions and load.

Q2. Can old switchgear be upgraded or reused?

Answer: Yes, with proper assessments, aged panels can be retrofitted or partially upgraded, though replacement is often safer.

Q3. How do I detect a failing switchgear panel?

Answer: Signs include overheating, tripping, unusual sounds, or visible wear. Thermal scans and resistance tests help detect hidden faults.

Q4. Are all types of switchgear suitable for outdoor use?

Answer: Not all. Outdoor switchgear requires weather-resistant enclosures and higher protection ratings. Choose panels rated for outdoor environments.

Q5. What is the role of insulation in switchgear?

Answer: Insulation prevents short circuits and protects personnel. Poor insulation often leads to internal arcing and equipment breakdown.

Q6. How does DJ Electro Controls ensure switchgear quality?

Answer: DJ Electro Controls uses high-grade tested components, follows strict quality checks, and customises panels to meet client-specific needs.

Q7. Should I choose modular or fixed-type switchgear?

Answer: Modular switchgear is easier to maintain and upgrade. Fixed-type may be more cost-effective for small installations.

Conclusion

Switchgear panel failures can often be avoided through smart design, regular maintenance, and trained personnel. Whether you’re managing a factory floor or a large distribution centre, prevention always costs less than repair.

By working with a reliable switchgear panel manufacturer like DJ Electro Controls, you not only reduce the risk of failures but also increase the safety and efficiency of your entire electrical system.

If you’re planning a new installation or upgrading an old panel, let us help you build a safer, more dependable system.
