How to Calculate the Right Size for an 11kV HT Panel

Introduction

When planning electrical infrastructure, one of the most common and often misunderstood questions is, What size 11kV HT panel do I need? The answer isn’t always straightforward. Factors like connected load, system fault level, future expansion, and installation conditions all play a part in making the right choice. Selecting the correct size is essential for safe, efficient, and cost-effective operations, whether you’re managing a factory, commercial building, or a power distribution unit.

In this guide, we’ll break down everything you need to know about sizing an 11kV HT panel, written in a clear and practical format that even non-engineers can understand. We’ll also discuss how a reliable panel manufacturer in Mumbai, like DJ Electro Controls, can support you through the process.

Understanding the Basics of an 11kV HT Panel

What is an 11kV HT Panel?

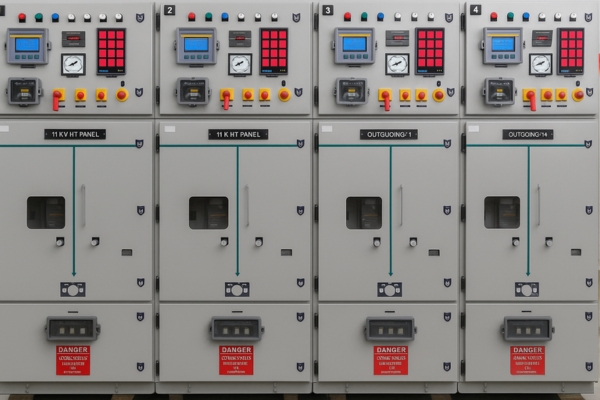

An 11kV HT Panel (High Tension Panel) is a crucial electrical distribution system used to control and protect high-voltage power circuits up to 11,000 volts. It is commonly used in industrial plants, commercial buildings, and utility substations to manage the safe flow of electricity from the main supply to transformers or heavy machinery. These panels include protective relays, circuit breakers, and metering devices to ensure smooth and secure power distribution. An 11kV HT Panel is essential for avoiding electrical overloads, short circuits, or equipment damage. It plays a vital role in maintaining system stability and ensuring uninterrupted power supply in high-load environments. Regular maintenance ensures optimal performance and long-term safety.

Why 11kV?

11kV is a common voltage level used in India’s industrial power distribution systems. It strikes a balance between manageable cable sizes and reduced transmission losses, making it ideal for medium- to large-scale applications

Why Proper Sizing Matters

Incorrect sizing can lead to:

• Overheating and panel failure

• Short circuit hazards

• Excess maintenance costs

• Poor energy efficiency

• Non-compliance with safety standards

Right sizing ensures:

• Safe operation under all load conditions

• Optimum performance of connected equipment

• Room for future expansion

• Compliance with statutory regulations

Key Factors That Influence 11kV HT Panel Sizing

To choose the right panel size, here are the practical factors that must be considered:

1. Total Connected Load (in kW or kVA)

This is the most fundamental step. Add up the total load demand (machinery, HVAC systems, lighting, etc.) to estimate the overall consumption.

• Convert load from kW to kVA (if needed):
  kVA = kW / Power Factor (typically 0.8 for industrial setups)

• Add a margin of 20–25% to accommodate future expansion.

2. System Voltage and Fault Level

• Standard supply voltage: 11kV

• Typical fault level for utilities: 25kA or higher

• Ensure the panel’s interrupting capacity is adequate to handle the fault level without damage

3. Panel Configuration

• Single incomer or dual incomer?

• Bus-coupler requirements?

• Is there a need for ring main unit (RMU) or VCB panels?

4. Type of Protection Required

Depending on your application, you may need:

• VCB (Vacuum Circuit Breakers)

• LBS (Load Break Switches)

• Protection Relays with overcurrent, earth fault, and under-voltage settings

These protection devices impact the physical size and cost of the panel.

5. Space Availability & Panel Dimensions

Physical constraints of your installation site determine how compact or modular the panel needs to be. Ask your panel manufacturer about custom sizing.

6. Ambient Temperature & Ventilation

Heat affects switchgear performance. Panels must be derated if installed in hot or poorly ventilated environments.

7. Compliance with Standards

Your panel should meet relevant IS standards (e.g. IS3427) and pass type tests for:

• Short circuit withstand capacity

• Dielectric strength

• Temperature rise

• Degree of protection (IP Rating)

Practical Example: Sizing for a Medium Industry

Let’s say your plant has:

• Connected load: 1200 kW

• Power factor: 0.85

• Future load: 300 kW

Step 1: Convert to kVA
1200 / 0.85 = approx. 1411 kVA

Step 2: Add future load
1411 + (300 / 0.85) = approx. 1764 kVA

Step 3: Choose VCB rating
Choose panel rated for 2000 kVA, 11kV, 25kA for 3 sec

Step 4: Decide Configuration
1 Incomer + 1 Bus Coupler + 2 Outgoings = 4 Panels

This simplified process shows how you can estimate what size HT panel might suit your installation.

Working with a Trusted Panel Manufacturer

Choosing a reputable panel manufacturer in Mumbai like DJ Electro Controls ensures:

• Accurate design as per site requirements

• Tested components for safety and durability

• Expert guidance for sizing and selection

• After-sales support for maintenance and expansion

Their expertise can help reduce downtime and prevent design-related failures in the long run.

How to Talk to Your Electrical Consultant or Vendor

When discussing with vendors or engineers, here’s what you should have ready:

• Single Line Diagram (SLD)

• Load schedule

• Future expansion plans

• Type of protection preferred

• Fault level from utility provider

• Site layout with panel room dimensions

This makes communication smooth and helps avoid delays or incorrect equipment selection.

Common Mistakes to Avoid

• Underestimating future load

• Ignoring ventilation or ambient temperature

• Not considering system fault levels

• Choosing standard sizes without application-specific review

• Skipping proper testing or quality certification

Frequently Asked Questions

Q1. What is the use of an 11kV HT panel?

Answer: An 11kV HT panel is used to control and protect electrical power distribution in medium-voltage systems. It safely manages high voltage incoming supply and routes power to transformers or subpanels.

Q2. How do I know what rating my HT panel should have?

Answer: You need to assess your total connected load in kVA, factor in future expansion, system fault level, and site-specific constraints. Consulting with a panel manufacturer is recommended.

Q3. Can HT panels be installed outdoors?

Answer: Yes, provided the panel has the correct IP rating and weatherproof enclosure. For outdoor use, IP55 or higher is generally suitable.

Q4. What is the price range of an 11kV HT panel in India?

Answer: It varies based on configuration, protection devices, and brand. As of now, a simple 11kV panel may start around ₹2.5 lakhs and go up depending on complexity.

Q5. What safety tests should an HT panel pass?

Answer: It must pass tests for dielectric strength, temperature rise, short-circuit withstand, and mechanical operation. IS3427 and IEC62271 standards should be followed.

Q6. What is the difference between HT panel and LT panel?

Answer: HT panels operate at high voltage levels (above 1kV, commonly 11kV), while LT panels manage low voltages (typically below 1kV). They serve different stages of power distribution.

Q7. Can DJ Electro Controls customise HT panels for specific industries?

Answer: Yes. DJ Electro Controls can design HT panels based on load requirements, site conditions, protection preferences, and expansion needs for sectors like manufacturing, pharma, or commercial buildings.

Conclusion

Choosing the right size for an 11kV HT panel may seem technical, but understanding the load, space, and safety requirements makes it more approachable. With the right guidance and a trusted panel manufacturer, the process becomes a reliable investment in your facility’s safety and performance.

If you need support with your project, DJ Electro Controls offers expert consultations, custom designs, and tested switchgear solutions tailored to your specific needs.

Contact us today to begin planning your safe, compliant, and future-ready electrical panel system.
